Charger Point For Car

The charger point for cars has completely transformed the electric vehicle industry by making it incredibly convenient for drivers to power up their cars, whether at home or on-the-go. This remarkable product is an absolute game-changer as it allows drivers to travel longer distances without any apprehensions of running out of energy. It is an absolute must-have for all electric car owners who wish to enjoy the ultimate driving experience without any disruptions. The charger point is a crucial component that has successfully altered how we interact with electric vehicles, making it easier and more accessible than ever before.

Introducing our advanced electric vehicle (EV) charging solution, the charger point for car. This cutting-edge technology offers a fast and convenient charging experience for electric vehicle owners. Its user-friendly design ensures reliability and safety, making it the perfect solution for residential, commercial, and public EV charging needs.

NO	Parameters	Charger Point for Car
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	7KW	11KW		22KW
3	Product Model NO.	ENC-ACL007A ANSI-ACL007A	ENC-ACL011A ANSI-ACL011A		ENC-ACL022A/B ANSI-ACL022B
4	Mounting	Ground-Mounted
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system	Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 54
12	Cooling	Natural Cooling		Air-cooled
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%
15	Single Output Max. Current	32 Amp	16 Amp/50 Amp		32 Amp/16 Amp(ENC) 50 Amp(ANSI)
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements

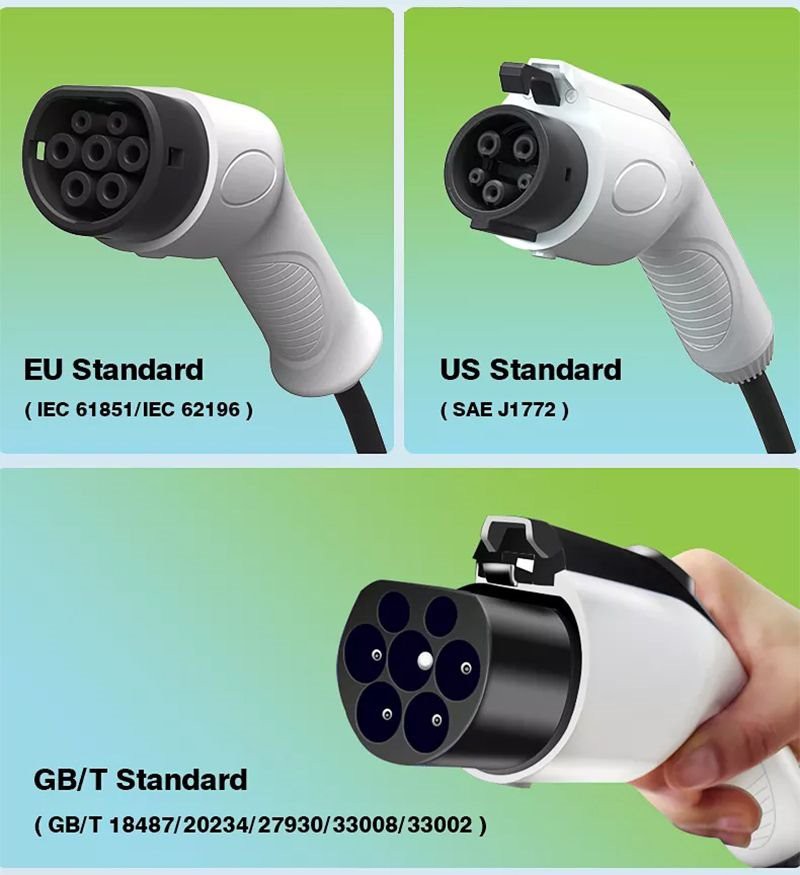

21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

Our charger point for car is designed to support the majority of electric vehicle models available in the market. The station has a high-power output capacity of up to 50 kW and is compatible with both DC fast charging and Level 2 AC charging. Our charger point for car is equipped with a high-quality lithium-ion battery to store energy and ensure smooth charging operations even during peak hours.

Our charger point for car is equipped with advanced features, making it an incredibly efficient and user-friendly charging solution. Some of its unique features include:

1. Real-time charging status monitoring
2. Automatic stall and cable detection
3. Payment and billing integration
4. Smart scheduling and capacity management

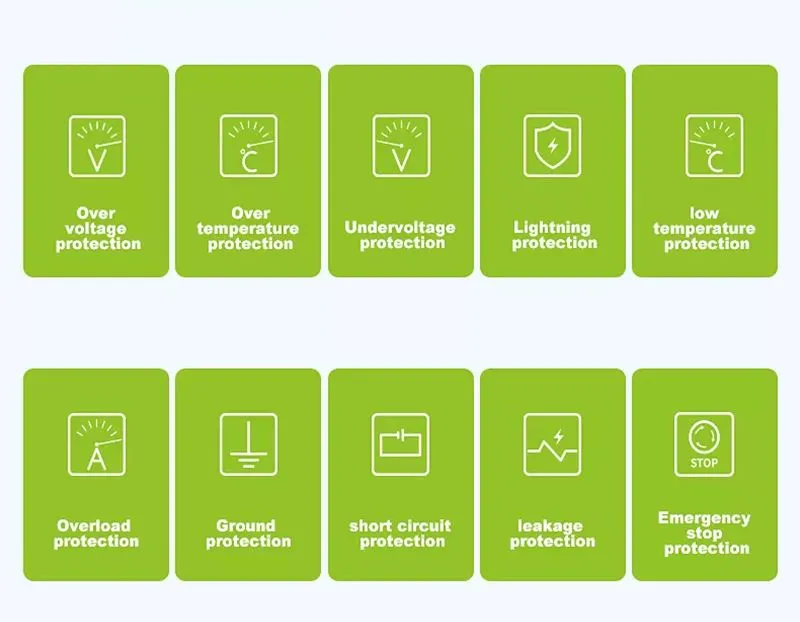

Our charger point for car is designed with safety as a top priority. Its advanced safety features include over-voltage and over-current protection, short-circuit protection, and emergency stop buttons. The station is made of high-quality materials, ensuring durability and resistance to harsh weather conditions.

Our charger point for car supports various payment methods, including contactless payment, credit or debit card payments, mobile payments, and subscription-based payment methods. Charging sessions can also be scheduled through the user-friendly mobile app, enabling quick and hassle-free charging.

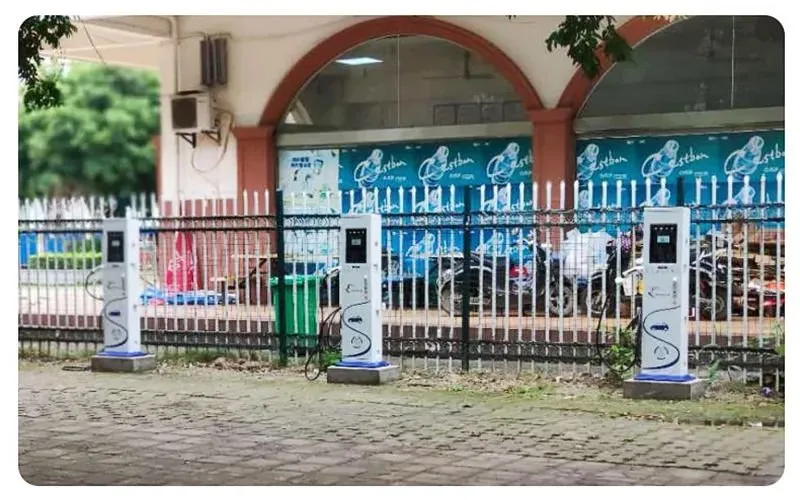

Our charger point for car can be installed in a variety of locations, including:

1. Residential Parking Spaces: Ev owners can install a charger point at home for convenient and efficient charging.
2. Public Charging Stations: Our charger point can be installed at public charging stations in high-traffic areas such as shopping malls and airports.
3. Company and Workplace Charging: Our charger point for car can be installed at office buildings, retail locations, and other commercial properties, enabling employees and customers to charge their EVs while they work or shop.
