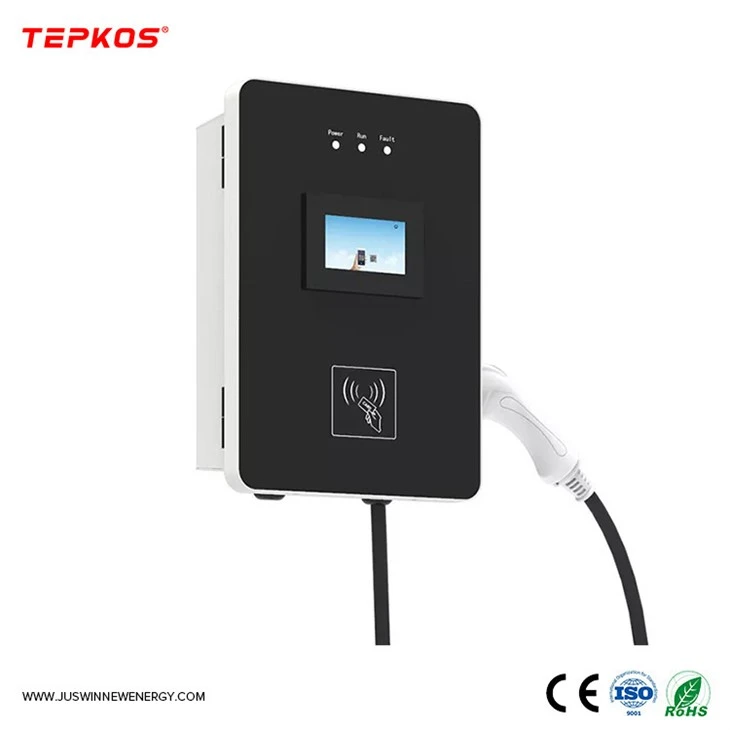

Electric Car Charging Piles Wallbox



As the world moves towards greener technologies, electric cars have emerged as a viable alternative to gas-guzzling vehicles. With their low carbon emissions and cost-effectiveness, electric cars have become increasingly popular. However, to keep these electric vehicles running, charging infrastructure is crucial. This is where the Electric Car Charging Piles Wallbox comes in - it is an innovative product designed to provide efficient and safe charging solutions for electric cars. It offers a convenient solution for electric car owners who want to charge their vehicles at home or in public places. With the rising demand for electric cars, the need for charging infrastructure is only expected to increase, making Electric Car Charging Piles Wallbox an important product for the future of sustainable transportation.



The increasing demand for electric car charging infrastructure has led to the development of innovative products like the Electric Car Charging Piles Wallbox. This product boasts amazing features such as intelligent technology, fast charging, and various safety features that make it the perfect charging device for electric cars. It's compact design, easy installation, and multiple payment options also make it a user-friendly charging solution. As electric vehicles become more popular, the Electric Car Charging Piles Wallbox is set to revolutionize the charging infrastructure by providing electric car owners with efficient, safe, and convenient charging solutions.

​





NO	Parameters	Electric Car Charging Piles Wallbox
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	3.5KW	7KW	11KW	22KW
3	Product Model NO.	ENC-ACB/L003P5A ANSI-ACB/L003P5A	ENC-ACB/L007A ANSI-ACB/L007A	ENC-ACB/L011A ANSI-ACB/L011A	ENC-ACB/L022A
4	Mounting	Wall-Mounted/Column Type
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system		Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 55
12	Cooling	Natural Cooling
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
15	Single Output Max. Current	16 Amp	32 Amp	16 Amp/50 Amp	32 Amp
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.





Electric Car Charging Piles Wallbox is a new generation charging device that uses advanced technology to provide fast charging. The product has a compact design and can be mounted on a wall, making it an ideal solution for parking lots, garages, and other confined spaces. The device is equipped with high charging efficiency, which saves time while charging electric vehicles. It also has an intelligent chip that regulates the charging process, ensuring that lithium-ion batteries are not overcharged, thereby prolonging the battery life.

​





The Electric Car Charging Piles Wallbox offers several features that make it the ideal charging device for electric cars. The product has a high power output, which enables it to charge electric cars rapidly. It is also equipped with smart features, such as wireless connectivity, which allows users to monitor the charging process remotely. It also has an LCD screen that displays real-time charging data, such as charging status, battery level, and charging time. In addition, the device has a compact design that saves space and is easy to install.

​





Safety is a top priority when it comes to charging electric cars, and the Electric Car Charging Piles Wallbox is designed to meet stringent safety standards. The device is equipped with multiple safety features, such as Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short Circuit Protection (SCP), and a Ground Fault Circuit Interrupter (GFCI). These safety features protect the electric car from damage due to overcharging or short circuits, ensuring that users can charge their vehicles safely.

​

The Electric Car Charging Piles Wallbox offers several payment options, such as credit card payment, mobile payment, or payment through a charging point app. The device supports multiple charging modes, such as slow charging, fast charging, and super-fast charging. The charging time depends on the battery capacity, and the charging mode selected. The device also has an automatic identification feature that selects the appropriate charging mode based on the electric car's battery capacity.

​





​





​





Electric Car Charging Piles Wallbox is designed to cater to the charging needs of electric cars in various scenarios such as homes, office buildings, public parking lots, and shopping centers. The product's compact design and ease of installation make it an ideal solution for those who require fast and convenient electric car charging. The device also supports multiple electric vehicle models and is compatible with various charging plugs such as Type 1, Type 2, and CCS.

​

​



​

​



​



​

​
