Car Smart Charger Wall Box



The car smart charger wall box is a cutting-edge innovation in the world of electric cars. This high-tech device is designed to make charging your vehicle a breeze, ensuring that it is ready to hit the road in no time. For eco-conscious car owners, this product is a godsend, as it allows you to significantly reduce your carbon footprint and save money on fuel costs. By simplifying and streamlining the charging process, this smart charger wall box is an essential tool for electric car owners. The product is incredibly easy to install and boasts a range of impressive features that set it apart as one of the most superior charging solutions on the market.



Looking for a convenient way to charge your electric car? The new car smart charger wall box is here to revolutionize the way you fuel your car. Not only is it safe and cost-effective, but it also has a variety of features that make it stand out from other charging solutions on the market. Plus, it meets all regulatory safety standards, ensuring that you can use it with complete peace of mind.
This innovative device supports multiple payment methods and can be used in both residential and commercial environments. Whether you're looking to save money on fuel or reduce your carbon footprint, the car smart charger wall box is an essential investment for any electric car owner. By using this product, you can contribute to a cleaner, more sustainable future for everyone.

​





NO	Parameters	Car Smart Charger Wall Box
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	3.5KW	7KW	11KW	22KW
3	Product Model NO.	ENC-ACB/L003P5A ANSI-ACB/L003P5A	ENC-ACB/L007A ANSI-ACB/L007A	ENC-ACB/L011A ANSI-ACB/L011A	ENC-ACB/L022A
4	Mounting	Wall-Mounted/Column Type
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system		Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 55
12	Cooling	Natural Cooling
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
15	Single Output Max. Current	16 Amp	32 Amp	16 Amp/50 Amp	32 Amp
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

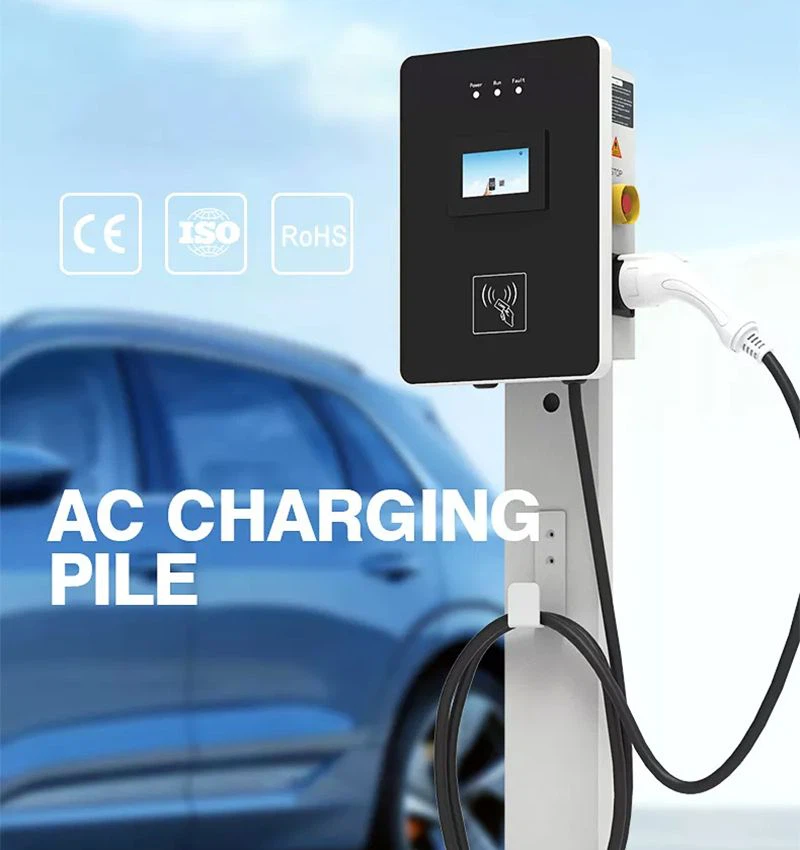

The car smart charger wall box is a sleek and modern device that can be easily mounted on a wall. The charger is connected to the power grid and has a charging cable that can be plugged into your electric car. The device has a digital display that shows the charging status, the number of amps drawn, and the time remaining until the battery is fully charged. The charger has a compact design and is made of durable materials that can withstand harsh weather and extreme temperatures.

​





The car smart charger wall box offers many features that make it a top-notch product for charging electric cars. Firstly, it has a fast charging speed that can quickly charge your vehicle, saving you time and effort. Secondly, it has a user-friendly interface that makes it easy to operate and monitor. Thirdly, it has a high level of safety features that protect you and your vehicle from electrical hazards and overcharging. Additionally, it has a smart charging system that automatically adjusts the charging rate to prevent damage to the battery and extend its lifespan.

​





The car smart charger wall box meets all safety standards set by regulatory bodies such as UL, ETL, and CE. The device has an overvoltage protection system that prevents the battery from exceeding the recommended charging levels. It also has a surge protection system that protects your vehicle from power surges and overloads. The device is also equipped with a temperature sensor that monitors the temperature of the battery and adjusts the charging rate accordingly to prevent overheating.

​

The car smart charger wall box is designed to accommodate all types of electric cars, and it can charge at any electric charging point. The device can accept payments through various methods, including credit cards, mobile wallets, and pre-paid cards. It has a built-in payment system that can securely process transactions and track usage. The device also allows drivers to schedule their charging time and pre-pay for charging sessions.

​



​



​





The car smart charger wall box is ideal for both residential and commercial environments. It can be installed in homes, parking lots, shopping malls, and other public areas where there is an electric charging point. The device can be used by individual car owners or fleet managers who want to monitor and control their charging needs. It is an ideal solution for businesses that want to provide a charging service to their employees or customers.

​

​



​

​



​



​

​
