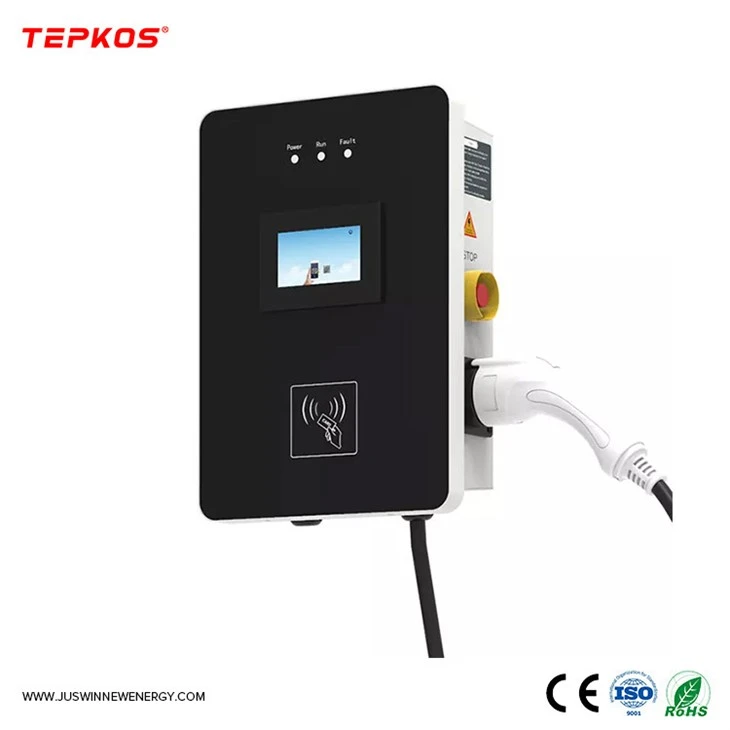

7kw Wallbox Ac Charging Pile



The TEPKOS 7kw wallbox AC charging pile is a top-of-the-line charging solution for electric vehicles that is both innovative and reliable. Boasting a chic and modern design, this charging pile is ideal for residential charging stations, commercial buildings, and public parking garages alike. Installing this charging pile is a breeze, thanks to its user-friendly interface and bevy of safety features. Whether you're charging at home or on the go, you can rest assured that the TEPKOS 7kw wallbox AC charging pile will provide a safe and efficient charging experience for your electric vehicle.



TEPKOS 7kw wallbox AC charging pile is an innovative and top-quality charging solution that caters to the needs of electric vehicle owners. The charging pile features advanced safety measures, an intelligent charging management system, and a sturdy design that can withstand varying weather conditions. It boasts flexibility in terms of compatibility with different types of electric vehicles, making it the go-to option for home charging stations, commercial buildings, and public garages.
TEPKOS 7kw wallbox AC charging pile stands out as one of the best options on the market for electric vehicle charging. Its high-end features and quality make it a reliable and efficient solution for charging your vehicle. With the system's advanced safety measures, you can charge your vehicle with peace of mind that your safety is not compromised. Additionally, the intelligent charging management system ensures that your vehicle is charged in the most effective way possible.
The durable design of the TEPKOS 7kw wallbox AC charging pile means that it is built to last and can withstand the elements. You can install this system indoors or outdoors without worrying about its performance being affected by weather conditions. Its versatility in terms of compatibility with different types of electric vehicles makes it an excellent choice for anyone with an electric vehicle looking for an efficient and reliable charging option.
Overall, the TEPKOS 7kw wallbox AC charging pile is a top-tier solution for charging electric vehicles. Its superior features and design make it stand out from other charging options on the market. Whether you are looking for a charging solution for your home or commercial property, this charging pile provides high-quality, reliable, and efficient charging for all electric vehicles.

​





NO	Parameters	7KW Wallbox AC Charging Pile
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	3.5KW	7KW	11KW	22KW
3	Product Model NO.	ENC-ACB/L003P5A ANSI-ACB/L003P5A	ENC-ACB/L007A ANSI-ACB/L007A	ENC-ACB/L011A ANSI-ACB/L011A	ENC-ACB/L022A
4	Mounting	Wall-Mounted/Column Type
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system		Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 55
12	Cooling	Natural Cooling
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
15	Single Output Max. Current	16 Amp	32 Amp	16 Amp/50 Amp	32 Amp
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.





TEPKOS 7kw wallbox AC charging pile is designed to be sturdy and dependable, with a durable metal casing and a weather-resistant design. It is equipped with a 32-amp charging capacity, making it capable of charging most electric vehicles within 3-4 hours. This charging pile is also compatible with various types of electric vehicles, including Tesla, BMW, Nissan, and more.

​





One of the standout features of the 7kw wallbox AC charging pile is its advanced safety features. It is designed with overcurrent, overload, under-voltage, and over-voltage protection. The charging pile also has a built-in ground fault circuit interrupter (GFCI), which automatically shuts off the power if it detects a fault in the electrical system.



Another unique feature of this charging pile is its intelligent charging management system. This system optimizes the charging process, ensuring that your electric vehicle is quickly and safely charged. It also has an advanced LED display that shows the charging status in real-time, making it easy to monitor and track your charging progress.



​





TEPKOS 7kw wallbox AC charging pile meets various safety standards, including CE, RoHS, ETL, and UL certifications. These standards ensure that the charging pile meets strict safety requirements and is durable and dependable.

​



The charging head for the 7kw wallbox AC charging pile is a Type 2 connector, which is a standard charging port for most electric vehicles in Europe. The charging head features a unique locking mechanism, which securely holds the charging cable in place, ensuring that it doesn't accidentally come loose during the charging process.



​





​





​





TEPKOS 7kw wallbox AC charging pile is suitable for a wide range of applications, including home charging stations, commercial buildings, and public garages. It is a versatile and efficient charging solution, making it an excellent choice for anyone who owns an electric vehicle.

​

​



​

​



​



​

​
