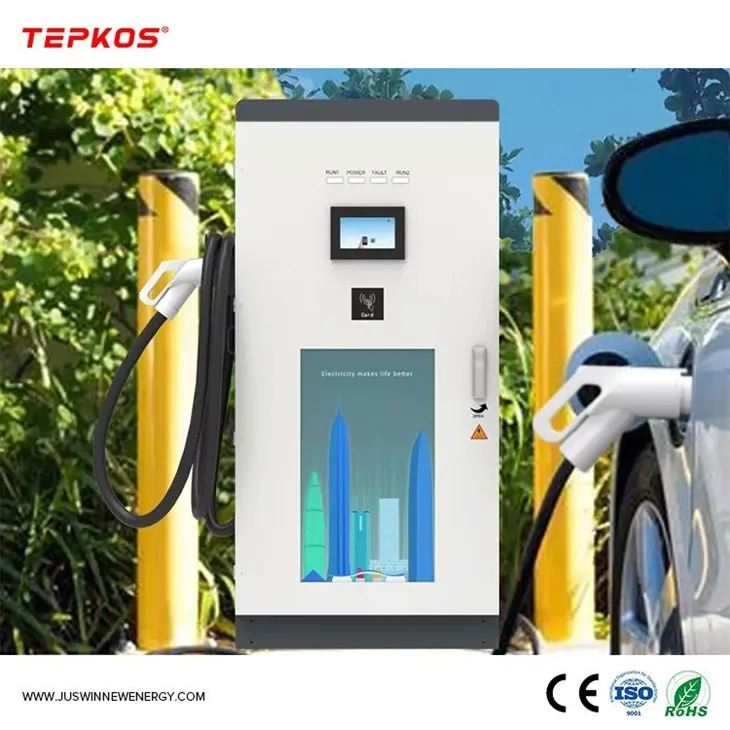

Level 3 Ev Charger Station
Product Instruction The demand for fast and efficient EV charging solutions has significantly increased due to the rise in EV ownership. This has led to the latest state-of-the-art technology in EV charging - Level 3 EV charger stations. These stations are designed to provide a hassle-free...
Description
Product Instruction
The demand for fast and efficient EV charging solutions has significantly increased due to the rise in EV ownership. This has led to the latest state-of-the-art technology in EV charging - Level 3 EV charger stations. These stations are designed to provide a hassle-free driving experience by offering reliable and rapid charging capabilities. With Level 3 EV charger stations, EV owners can recharge their vehicles quickly and get back on the road without a long wait. The installation of these stations is essential in meeting the needs of the growing number of EV users and promoting the adoption of environmentally-friendly transportation.
If you want to effortlessly and quickly charge your electric vehicle, then Level 3 EV charger stations are a fantastic option. They come with state-of-the-art features that elevate their performance, and they strictly adhere to the highest safety protocols. By utilizing Level 3 EV charger stations, electric vehicle owners can access an impeccable charging experience, making EV ownership significantly more convenient. With the gradual increase in EV adoption, Level 3 EV charger stations represent a glimpse into the future of electric vehicle charging infrastructure.
Product Parameters
|
NO |
Parameters |
Level 3 EV Charger Station | ||
|
General Requirements |
||||
|
1 |
EV Charger Type |
DC |
||
|
2 |
Charger Capacity |
160KW |
180kw |
240KW |
|
3 |
Product Model NO. |
ENC-DCL160B |
ENC-DCL180B |
ENC-DCL240B |
|
4 |
Mounting |
Ground-Mounted |
||
|
Input Requirements |
||||
|
5 |
AC Supply System |
Three-Phase, 5 Wire AC system |
||
|
6 |
Nominal Input Voltage |
AC380V±15% |
||
|
7 |
Input Frequency |
45-65Hz |
||
|
Environmental Requirements |
||||
|
8 |
Ambient Temperature |
-25 to 55°C |
||
|
9 |
Ambient Humidity |
5 to 95% |
||
|
10 |
Storage Temperature |
-40 to 70°C |
||
|
Mechanical Requirements |
||||
|
11 |
IP Ratings |
IP 54 |
||
|
12 |
Cooling |
Air-cooled |
||
|
Output Requirements |
||||
|
13 |
Number of Outputs |
2 |
||
|
14 |
Type of Each Output |
DC200-750V |
||
|
15 |
Single Output Max. Current |
200 Amp |
||
|
16 |
Power Factor |
≥0.99(50% load above) |
||
|
User Interface & Display Requirements |
||||
|
17 |
Display & Touch-Screen |
7 InchesTouch Screen with Shell |
||
|
18 |
User Authentication |
Mobile Application or User Interface / QR Code/RFID Card /Password Login |
||
|
19 |
Metering Information |
Consumption Units |
||
|
Communication Requirements |
||||
|
20 |
Communication between EVSE and Central Server |
OCPP 1.6J Protocol (Optional) |
||
|
21 |
Interface between Charger and CMS |
Ethernet/3G/4G/WIFI (Optional) |
||
|
Protection & Safety Requirements |
||||
|
22 |
Executive Standard |
IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc. |
||
|
23 |
Safety Parameters |
Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. |
||
Product Details
Level 3 EV charger stations, also known as DC fast chargers, are the fastest charging devices for electric cars. These highly efficient and advanced EV chargers are capable of delivering a much higher output than Level 2 chargers, which are commonly found in homes and public spaces. The charging process is made much faster with Level 3 EV chargers as they supply electric current at a higher voltage, usually around 400V and a current of up to 240kW.
Products Feature
Level 3 EV charger stations come packed with various features that enhance their performance and usability. They are built to be highly efficient and can charge EVs in the shortest time possible. They are also equipped with advanced cooling systems that regulate the temperature to ensure the charger doesn't overheat or damage the battery. Furthermore, these chargers come with a user-friendly interface that guides you through the charging process, so you don't have to second-guess the next step. Level 3 EV charger stations are also designed to accommodate various plug types, which is essential given the increasing number of electric cars and plug-in hybrids in the market.
Safety Features
Safety is an aspect taken very seriously with Level 3 EV charger stations. These units are typically built with fire-resistant materials that can withstand high temperatures and last a long time. They are also equipped with numerous safeguards, such as overcurrent and overvoltage protection as well as safety disconnects. Moreover, in the unlikely event of an electrical fault or damage to the charger, the station is designed to automatically shut down, further minimizing the risk of fire or explosion.
Charging Method And Payment Options
Users will be able to enjoy a hassle-free and straightforward charging and payment process with Level 3 EV charger stations. The charging process is as easy as plugging in your EV and waiting for it to charge. The stations come equipped with a pay terminal or payment system that allows users to pay for charging sessions quickly and easily. Additionally, some Level 3 EV charger stations may offer subscription services that allow frequent users to enjoy discounted rates or special benefits.
Product Dimension And Feature
Customer Photos
Level 3 EV charger stations are ideal for various applications, including commercial and residential properties, public spaces, and highways. They provide a highly efficient and reliable charging solution for EV owners, especially those who need to charge their cars quickly as they travel long distances. Public spaces such as malls, community centers, airports, and train stations can also benefit from setting up these chargers as they attract EV owners, who sometimes require quick top-ups.
Company Profile
Our Certificates
Our factory get the certification of ISO9001,ISO14001,ISO45001,products has UL,CE,Rohs,,FCC and so on.
Packing and Delivery
All level 3 ev charger stations are packed with carton box and poly wooden case to avoid any damages.
