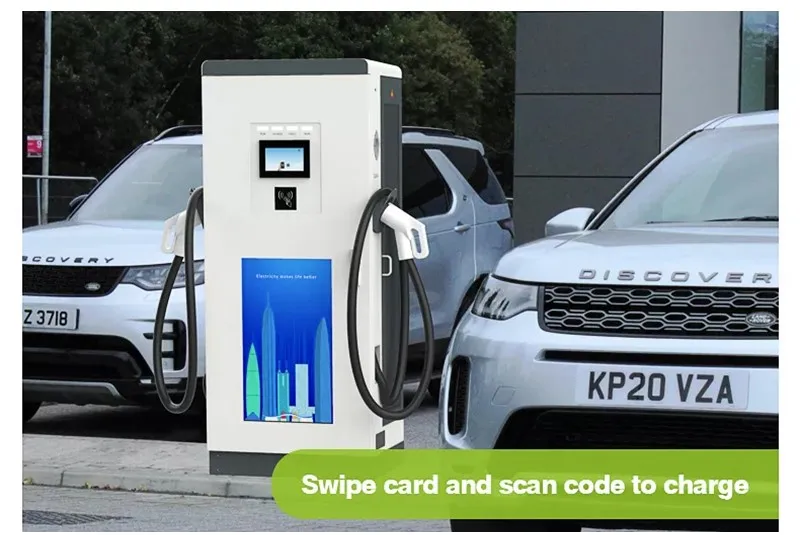

300KW Fast Ev Charger Station

Introducing the groundbreaking 300KW fast EV charger station, an innovative breakthrough in the electric vehicle charging industry. This cutting-edge product boasts an impressive charging power of up to 300KW, enabling a rapid full charge for electric vehicles within minutes. For busy drivers constantly on the move, this charger station offers unparalleled convenience and efficiency. Its lightning-fast charging capability sets it apart from other options available in the market, providing an exceptional charging experience for electric vehicle owners.



Looking for a top choice in fast EV charging solutions? Look no further than the game-changing 300KW fast EV charger station. This revolutionary product offers speed, reliability, and user-friendliness for electric vehicle owners. With its advanced features and high compatibility, it meets all safety standards, making it a preferred option among drivers and operators. If you want an efficient and trustworthy charging solution for your EV, the 300KW fast EV charger station is definitely worth considering.





NO	Parameters	300KW Fast EV Charger Station
General Requirements
1	EV Charger Type	DC
2	Charger Capacity	30KW	40KW
3	Product Model NO.	ENC-DCL030A ANSI-DCL030A JIS-DCL030A	ENC-DCL040A/B ANSI-DCL040A/B JIS-DCL040A/B
4	Mounting	Ground-Mounted
Input Requirements
5	AC Supply System	Three-Phase, 5 Wire AC system
6	Nominal Input Voltage	AC380V±15%
7	Input Frequency	45-65Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 54
12	Cooling	Air-cooled
Output Requirements
13	Number of Outputs	1		1 or 2
14	Type of Each Output	DC200-750V DC150-500V(JIS)
15	Single Output Max. Current	125 Amp	150 Amp
16	Power Factor	≥0.99(50% load above)
User Interface & Display Requirements
17	Display & Touch-Screen Size	7 InchesTouch Screen
18	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
19	Metering Information	Consumption Units
Communication Requirements
20	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
21	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
22	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc.
23	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.





The 300KW fast EV charger station is equipped with state-of-the-art technology that ensures optimal charging efficiency and reliability. It features a high-power charging interface that can support a wide range of EV models, from passenger cars to heavy-duty trucks. The charging station also comes with advanced safety features that protect both the vehicle and the user, including overcurrent protection, overvoltage protection, and short-circuit protection.





The 300KW fast EV charger station boasts several features that make it a top choice for EV drivers. These include:



1. Fast charging: With a charging power of up to 300KW, this station can provide a full charge to most electric vehicles in under 30 minutes.



2. High compatibility: The station supports a wide range of EV models, making it a versatile option for drivers.



3. Advanced safety features: The station is equipped with several safety features that protect both the vehicle and the user.



4. User-friendly interface: The charging station is designed to be easy to use, with a user-friendly interface that guides drivers through the charging process.





The 300KW fast EV charger station is designed to meet all relevant safety standards and regulations, including UL, CSA, and CE. It is also compliant with the latest international charging standards, ensuring that it can be used safely and reliably across different regions and markets.





The 300KW fast EV charger station supports a range of charging and payment methods to suit different user preferences and needs. This includes RFID and mobile payment options, as well as traditional credit card payments. The station also comes with remote monitoring capabilities, which enable operators to track usage and troubleshoot any issues remotely.





The 300KW fast EV charger station is suitable for a wide range of applications, including:

1. Public charging stations: The station is ideal for public charging stations located in high-traffic areas, such as shopping malls, airports, and parking garages.



2. Fleet charging: The station is also suitable for organizations with large fleets of electric vehicles, such as public transportation agencies and delivery companies.
